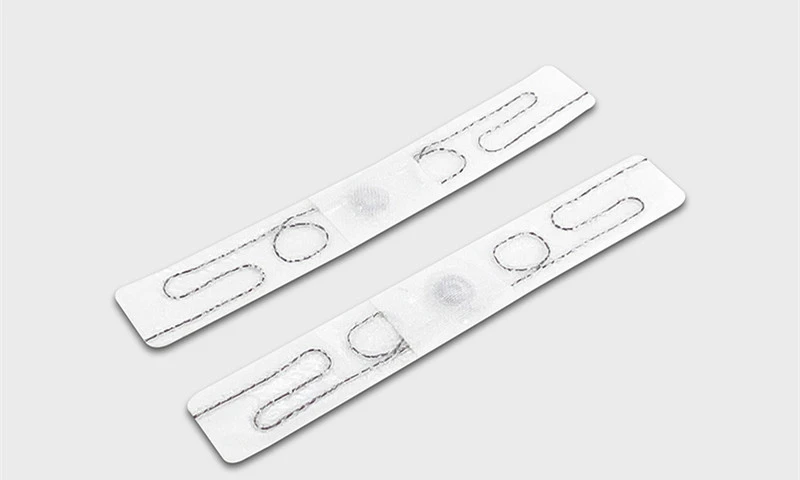

UHF MRI Laundry Tag
The MRI UHF Laundry Tag is an ultra-high-frequency textile RFID solution engineered for high-stakes MRI environments in healthcare, hospitality, and uniform rental sectors. This flexible tag seamlessly embeds into fabrics without compromising wearer comfort while delivering industrial-grade resistance to high temperatures, pressure, and chemical detergents. Certified MR Conditional, it operates safely in 1.5T/3T MRI systems without magnetic displacement, overheating, or image artifacts.
Product Overview
|
Model |
Dimension |
Chip |
Frequency |
Lifespan |
Installation |
|
Laundry Tag7015 |
70 x 15 x 1.5 mm (2.756 x 0.591 x 0.059 in) |
NXP Ucode-9 EPC 96-bit, User-0bit |
845~950MHz |
200 wash cycles or 3 years |
Sewing |
|
Laundry Tag7012 |
75 x 12 x 1.5 mm (2.953 x 0.472 x 0.059 in) |
NXP Ucode-9 EPC 96-bit, User-0bit |
845~950MHz |
200 wash cycles or 3 years |
Sewing |
|
Laundry Tag7515 |
75 x 15 x 1.5mm (2.953 x 0.591 x 0.059 in) |
NXP Ucode-9 EPC 96-bit, User 0-bit |
845~950MHz |
200 wash cycles or 3 years |
Sewing |
|
Laundry Tag 7010 |
70 x 10 x 1.5 mm (2.756 x 0.394 x 0.059 in) |
NXP Ucode-9 EPC 96-bit, User 0-bit |
845~950MHz |
200 wash cycles or 3 years |
Sewing |
|
Laundry Tag5815 |
58 x 15 x 1.5 mm (2.283 x 0.591 x 0.059 in) |
NXP Ucode-9 EPC 96-bit, User 0-bit |
845~950MHz |
200 wash cycles or 3 years |
Sewing |
|
Laundry Tag5512 |
55x 12 x 1.5 mm (2.165 x 0.472 x 0.059 in) |
NXP Ucode-9 EPC 96-bit, User 0-bit |
845~950MHz |
200 wash cycles or 3 years |
Sewing |
|
Laundry Tag3611 |
36 x 11 x 1.5 mm (1.417 x 0.433 x 0.059 in) |
NXP Ucode-9 EPC 96-bit, User 0-bit |
845~950MHz |
200 wash cycles or 3 years |
Sewing |
|
Laundry Tag3520 |
35 x 20 x 1.5 mm (1.378 x 0.787 x 0.059 in) |
NXP Ucode-9 EPC 96-bit, User 0-bit |
845~950MHz |
200 wash cycles or 3 years |
Sewing |
|
Laundry Tag3515 |
35 x 15 x 1.5 mm (1.378 x 0.59 x 0.059 in) |
NXP Ucode-9 EPC 96-bit, User 0-bit |
845~950MHz |
200 wash cycles or 3 years |
Sewing |
The MRI UHF Laundry Tag is an ultra-high-frequency textile RFID solution engineered for high-stakes MRI environments in healthcare, hospitality, and uniform rental sectors. This flexible tag seamlessly embeds into fabrics without compromising wearer comfort while delivering industrial-grade resistance to high temperatures, pressure, and chemical detergents. Certified MR Conditional, it operates safely in 1.5T/3T MRI systems without magnetic displacement, overheating, or image artifacts.
Features & Applications
▲ Global UHF compliance (EPC Gen2/ISO 18000-6C) with NXP Ucode 9 chip enables long-range reading, asset encoding, and wash-cycle tracking
√ MRI-Safe Operation: This MRI UHF Laundry Tag is validated MR Conditional, eliminating diagnostic interference during scans – no heating, movement, or image distortion risks
√ Intelligent textile management for:
Hospital linens/surgical gowns & hotel laundry automation
Uniform rental centers, dry cleaners, and emergency service systems
Auto-inventory, sorting, anti-theft, and full lifecycle tracking
Installation
• Sewing & Pouch:
Stitch tags into garment hems/label pockets (manual/machine). Avoid antenna/chip areas.
• Heat-Sealing:
Apply industrial heat press at 200–215 °C with 0.5 MPa pressure for 12–18s.
Engineered to withstand 180–210 °C ironing (10–60s) and high-pressure drying (60 bar), this UHF RFID Laundry Tag maintains optimal performance through extreme industrial laundry cycles.
Industrial endurance
● Survives 200+ wash cycles (wash/dry/iron)
● Withstands ≥60-bar extractor pressures
● Resists chemicals, steam sterilization, and dry cleaning
● MR Conditional certified for 1.5T/3T MRI safety
|
Operating Temperature |
Washing: 90℃ (194℉), 15 minutes, 200 cycles |
Pre-drying: 180 ℃(356℉), 30 minutes,200 cycles |
Ironing: 180℃ (356℉), 10 seconds, 200 cycles |
Sterilization Process: 135℃ (275℉), 20 minutes, 200 cycles |
Key Advantages
• MRI Safety: Ensures diagnostic accuracy in medical settings
• Flexible Installation: Sewn/pouch/heat-press options
• Industrial Reliability: Stable through extreme laundering
• Smart Management: Auto-inventory, loss prevention, real-time tracking
• MRI-Ready: This MRI UHF Laundry Tag is ideal for radiology departments, surgical textiles, and MRI-compatible environments
Customized Options：
